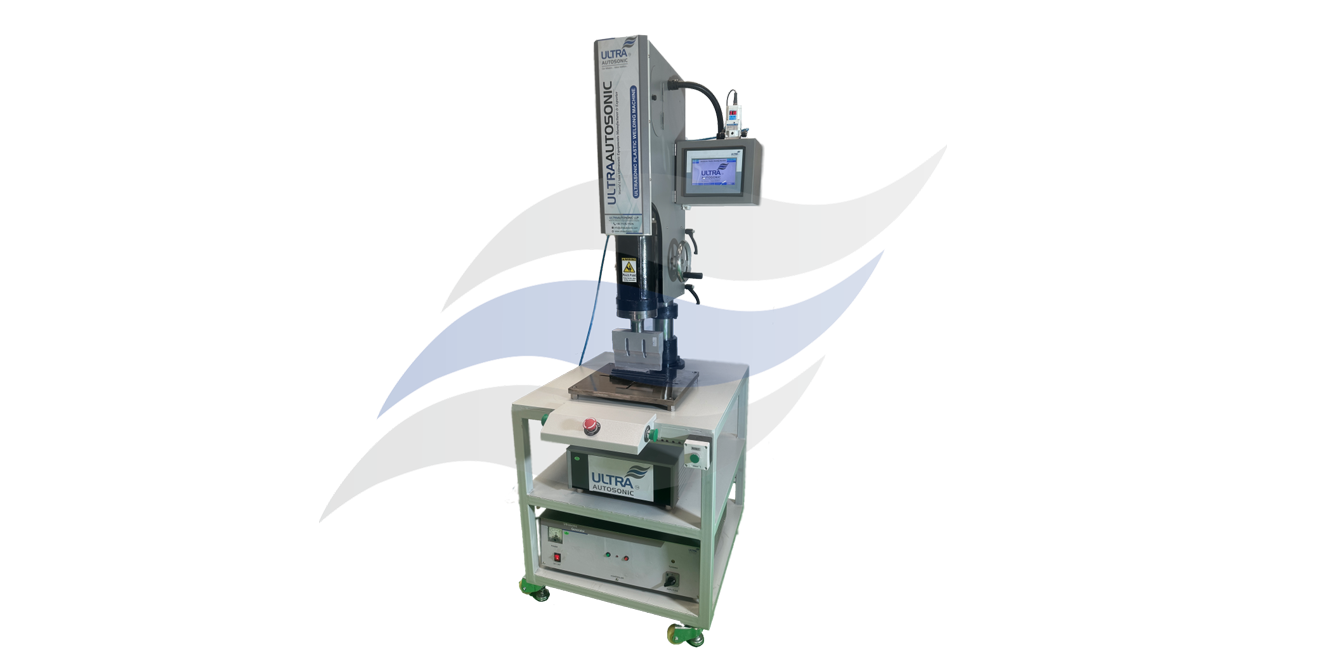

The Ultrasonic Plastic Welding Machine for the medical industry is a precision-engineered solution designed for welding plastic strips used in plaster cast supports. It ensures strong, clean, and consistent welds without the use of adhesives or additional materials. Ideal for medical manufacturing, the system offers high accuracy, reliable performance, and hygienic operation, meeting the strict quality standards required for orthopedic applications.
| Specification | Details |
|---|---|
| Frequency (kHz) | 20 khz |
| Power (Watt) | 3000 |
| Horn | Titanium |
| Actual Weight | Approx.200 kg |
| Actual Size (L x W x H) | Approx. (700 X 700 X 1800 mm) |
| Packaging Type and Size | Wooden Box and Approx. Size (800 X 800 X 2000) mm |
| Power Supply | AC 230V 50/60Hz, 16Amp |
| CVT / Stabilizers | If the voltage is unstable, then use a CVT/Stabilizer to avoid damage |
| Operating Working Pressure | 2 to 10 bars (Air Compressor required 1Hp 50Ltr) |
| Input Power Supply | AC 230 V, 50/60 Hz, 16 Amp |
| Cylinder Type | Pneumatic |
| Stroke Length | As per the application |
| Control System | Fully touch screen |
| Welding Mode | Time Mode / Energy Mode / Manual Mode |
| Frame Structure | Rigid MS / Aluminium Body |
❑ Touchscreen PLC Controller
❑ Low Maintenance Design
❑ Single-Phase Power Consumption
❑ Adjustable Height to Suit Application Needs
