Ultrasonic Plastic Welding Machine for Packaging Applications
We provide Ultrasonic Plastic Welding Machine for Packaging Applications
(Ultrasonic Plastic Welding Machines) from Pune, Maharashtra, India.
Introduction

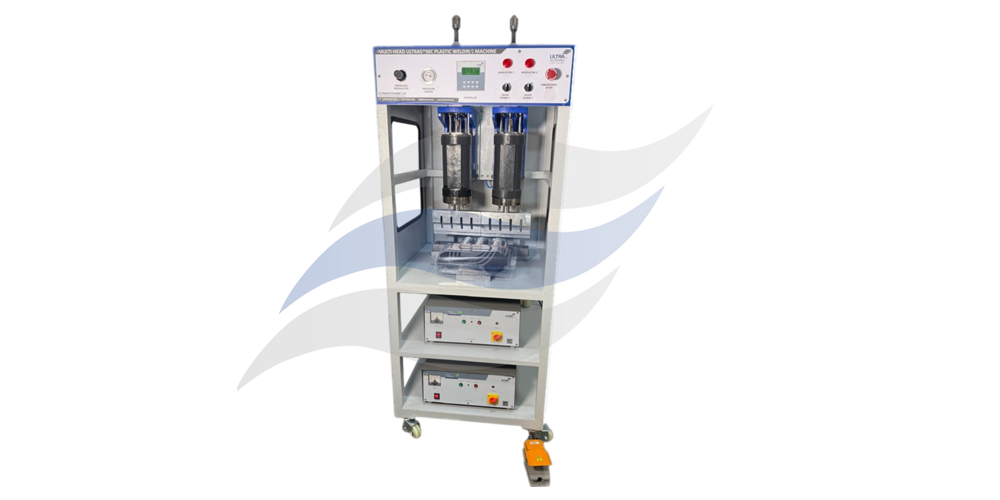

The multi-head ultrasonic plastic welding machine is a specialised system designed for sealing & assembling packaging boxes. It is mainly used in filtration product packaging equipment, providing precise, efficient & uniform welding through multiple ultrasonic heads operating simultaneously. The machine operates at a frequency of 20 KHz & each generator has a power rating of 2000 watts.
Specifications
Specification
Details
Frequency (kHz)
20 khz
Power (Watt)
2000
Horn
Titanium
Actual Weight
Approx. 200 kg
Actual Size (L x W x H)
Approx. (700 X 700 X 1800 mm
Packaging Type and Size
Wooden Box and Approx. Size (800 X 800 X 2000) mm
Power Supply
AC 230V 50/60Hz, 16Amp
CVT / Stabilisers
If the voltage is unstable, then use a CVT/Stabiliser to avoid damage
Operating Working Pressure
2 to 10 bars (Air Compressor required 1Hp 50Ltr)
Input Power Supply
AC 230 V, 50/60 Hz, 16 Amp
Cylinder Type
Pneumatic
Stroke Length
As per the application
Welding Mode
Delay Time Mode / Weld Mode /Hold Mode/Total Number s of Weld Jobs
